Science knowledge - Whit is the difference between USB2.0 and USB3.0?

Time:2018-08-29 16:47:50

The USB 1.1 standard specifies that a standard cable can have a maximum length of 5 meters (16 ft 5 in) with devices operating at full speed (12 Mbit/s), and a maximum length of 3 meters (9 ft 10 in) with devices operating at low speed (1.5 Mbit/s).[35][36][37]

USB 2.0 provides for a maximum cable length of 5 meters (16 ft 5 in) for devices running at high speed (480 Mbit/s). The primary reason for this limit is the maximum allowed round-trip delay of about 1.5 μs. If USB host commands are unanswered by the USB device within the allowed time, the host considers the command lost. When adding USB device response time, delays from the maximum number of hubs added to the delays from connecting cables, the maximum acceptable delay per cable amounts to 26 ns.[38] The USB 2.0 specification requires that cable delay be less than 5.2 ns/m (1.6 ns/ft), (192000 km/s) - which is close to the maximum achievable transmission speed for standard copper wire).

The USB 3.0 standard does not directly specify a maximum cable length, requiring only that all cables meet an electrical specification: for copper cabling with AWG 26 wires the maximum practical length is 3 meters (9 ft 10 in).[39]

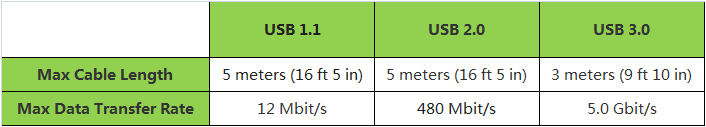

In summary, the main difference between usb2.0 & usb3.0 is:
Max Cable Length and Max Data Transfer Rate.
